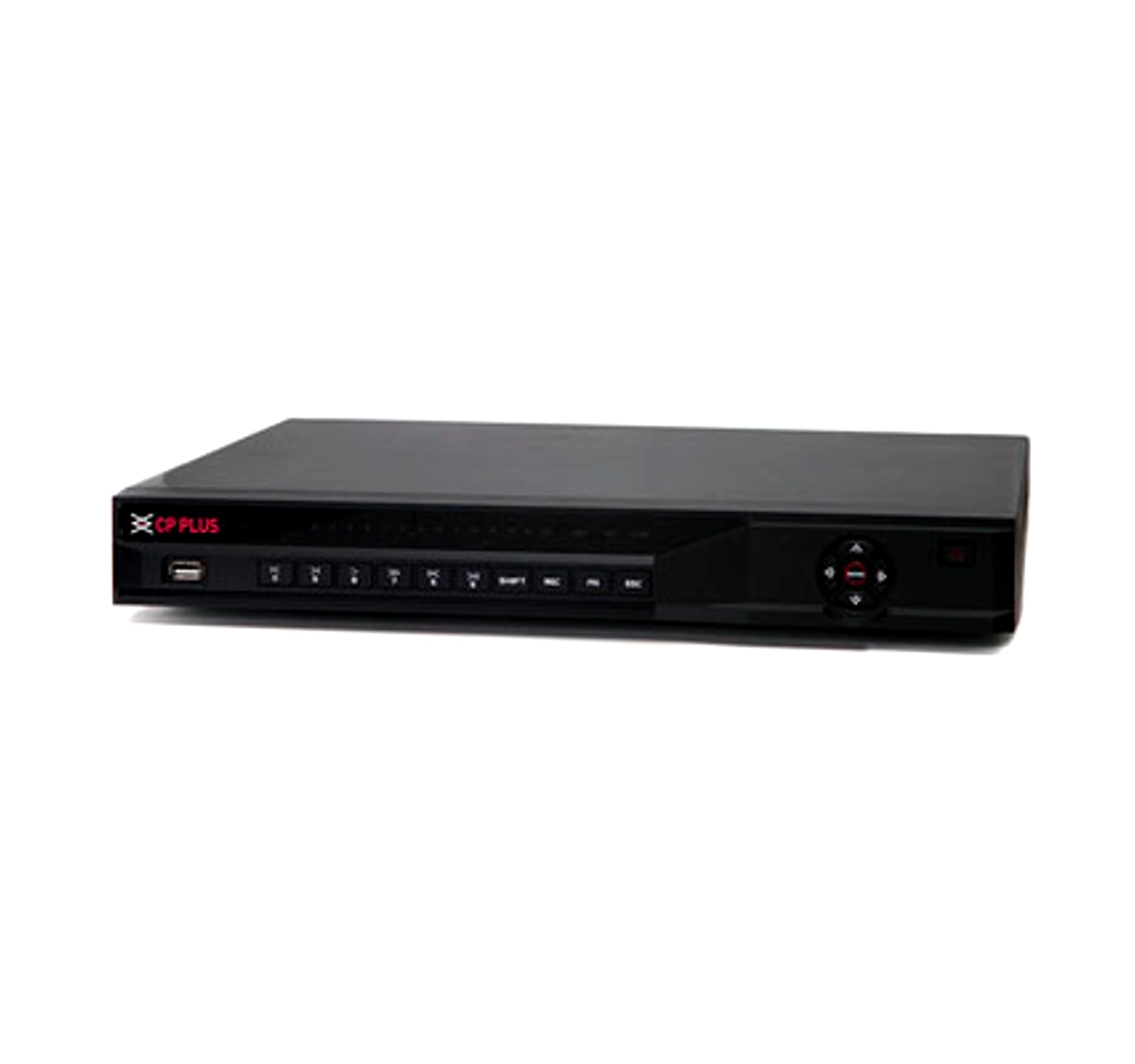

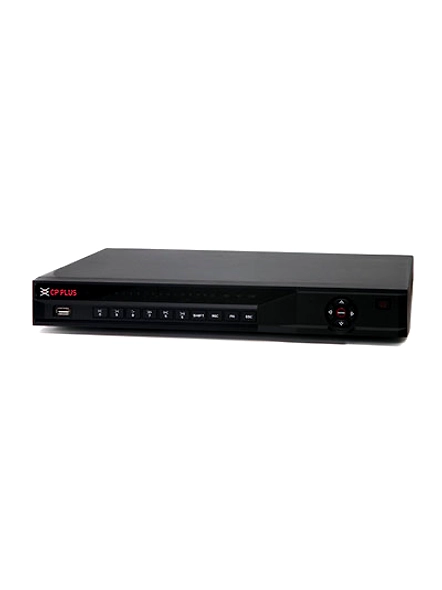

32 Ch. 1080P Lite H.265 Cosmic HD DVR
-
Product is not available
CP-UVR-3201E2-H
32 Ch. 1080P Lite H.265 Cosmic HD DVR
Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
Support upto 6MP IP Camera
Max 64Mbps Incoming Bandwidth
H.265 dual-stream Video Compression
HDMI / VGA Simultaneous Video Output
Support 2 SATA HDD up to 10TB Each, 2 USB Ports
Mobile Software: iCMOB, gCMOB
CMS Software:KVMS, KVMS Pro
-
Additional Information
ProcessorEmbedded processor
Operating SystemEmbedded LINUX
IP Camera Input16Ch. : each channel up to 6MP
Two-way TalkReuse audio in/out, RCA
User InterfaceGUI
Video Input32 channel, BNC
Video Output1 HDMI, 1 VGA, 1 TV
Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
CompressionH.265/H.264
Video Resolution1920×1080, 1280×1024, 1280×720
Video RecordingMain Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF (1~25/30fps), Sub stream: CIF (1~7fps)
Video Display Split1/4/8/9/16/25/36
Audio Input1 channel, RCA
Audio Output1 channel, RCA
Motion DetectionMD Zones: 396 (22 × 18)
Video LossSupports
Camera BlankSupports
Hard Disk2 SATA port, up to 10TB Each
Smart PhoneiPhone, iPad, Android Phone
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Backup ModeUSB Device/ Network
Interface Ports1 HDMI, 1 VGA, 2 USB Ports(1 USB 2.0 , 1 USB 3.0), 1 RS485
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Max User Account128 users
Ethernet1 RJ-45 Port (1000M)
ProtocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
Power SupplyDC12V/5A
Power Consumption<20W(without HDD)
Working Temp-10 ~+55°C / 10~90%RH
Dimension375mm×287mm×53mm
Weight1.9kg (without HDD)
-
